Core Highlights
DesignAll-in-one portable shockproof suitcase chassis, natively integrated 15.6-inch 1920×1080 HD LCD display and embedded keyboard
batterySupports optional customized built-in battery to achieve portable and long battery life of about 2 to 3 hours
ExpandProvides 1×PCIe x16 full-height card slot, supporting expansion of independent graphics cards, 10G fiber optic network cards, and multi-channel display output cards
serial port2×RS232 serial port, supports jumper setting to RS485 serial port
runSupports long-term stable operation 7×24 hours, supports power-on and wake-up on network
systemSupports mainstream operating systems such as Windows / Linux / Ubuntu / CentOS / Server
Application scenarios
Basic product information
| Product name | 15.6-inch dual network port portable reinforced suitcase industrial computer |
| Product brand | YANKEN |
| Product model | ACP-2000 |

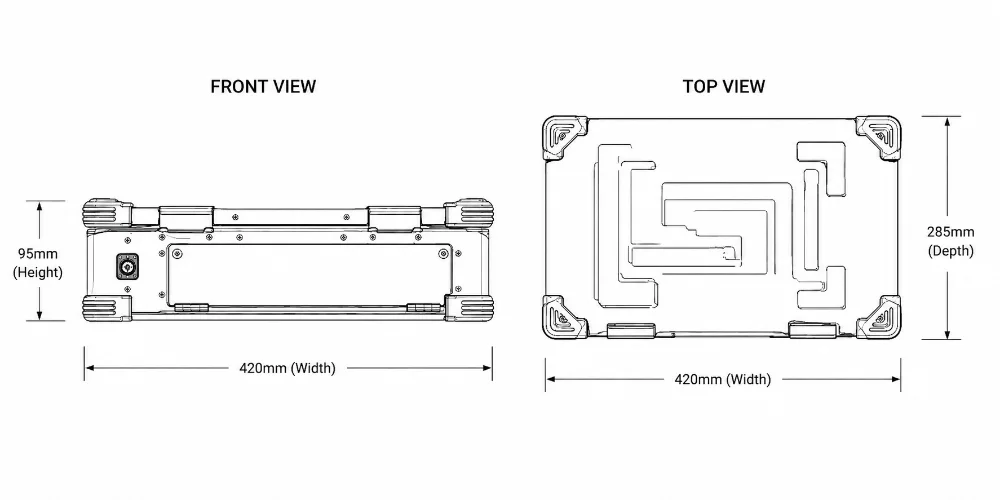

| physical size | 420mm (width) × 285mm (depth) × 95mm (height) |
| battery support | The default shipment is without a battery (optional 120V/220V/240V power supply); a built-in battery can be customized at the price difference (DC 12V power supply, battery life is about 2–3 hours) |
Technical parameters
| Specification parameters | Intel 3~11th generation platform | Intel 12th~14th generation platform |
|---|---|---|
| Processor (CPU) | Intel 3~11th generation Core i3/i5/i7/i9 | Intel 12th~14th generation Core i3/i5/i7/i9 |
| Memory (RAM) | Maximum 8GB for 3rd to 4th generation; 64GB for 6th to 11th generation | Maximum support 64GB |
| Hard disk (Storage) | 2×SATA hard drive + 1×MSATA hard drive | 2×SATA hard drive + 1×M.2 hard drive |
| Network port (LAN) | 2×Gigabit network port | 2×Gigabit network port |
| Display | 15.6-inch 1920×1080 HD LCD display | 15.6-inch 1920×1080 HD LCD display |
| display interface | VGA + HDMI dual display, supports dual-screen synchronous/asynchronous display | VGA + HDMI dual display, supports dual-screen synchronous/asynchronous display |
| USB interface | Rear: 2×USB2.0 + 4×USB3.0 | Rear: 2×USB2.0 + 4×USB3.0 |
| COM serial port | 2×RS232 (COM1/COM2 can be set to RS485 by jumper) | 2×RS232 (COM1/COM2 can be set to RS485 by jumper) |
| Expansion slot | 1×PCIe x16 expansion slot (extension adapter card required) | 1×PCIe x16 expansion slot (extension adapter card required) |
| Support system (OS) | Windows / Linux / Ubuntu / CentOS / Server | Windows / Linux / Ubuntu / CentOS / Server |
