Core Highlights
expansion card1×PCIe x16 half-height card slot, supports on-demand expansion of independent graphics cards, Gigabit network port cards, multi-screen display cards, and 10G fiber optic cards
showHDMI + VGA dual display, supports dual-screen synchronization and asynchronous independent display
serial portStandard configuration: 6×RS232 serial ports, of which COM1/COM2 can be set to RS485/RS422 with jumpers
temperature controlSupports optional customization of the front LCD temperature control display, which can display the chassis operating status and temperature in real time
runSupports long-term stable operation 7×24 hours, supports power-on and wake-up on network
systemSupports mainstream operating systems such as Windows / Linux / Ubuntu / CentOS / Server
Application scenarios
Basic product information

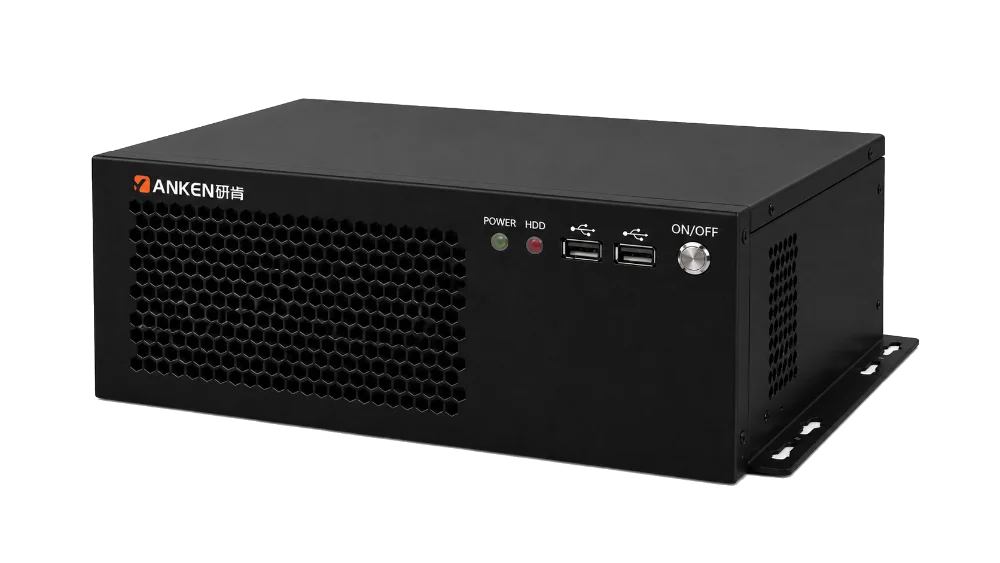

| Product name | Wall-mounted dual network temperature control industrial computer |
| Product brand | YANKEN |
| Product model | EPC-2250 |

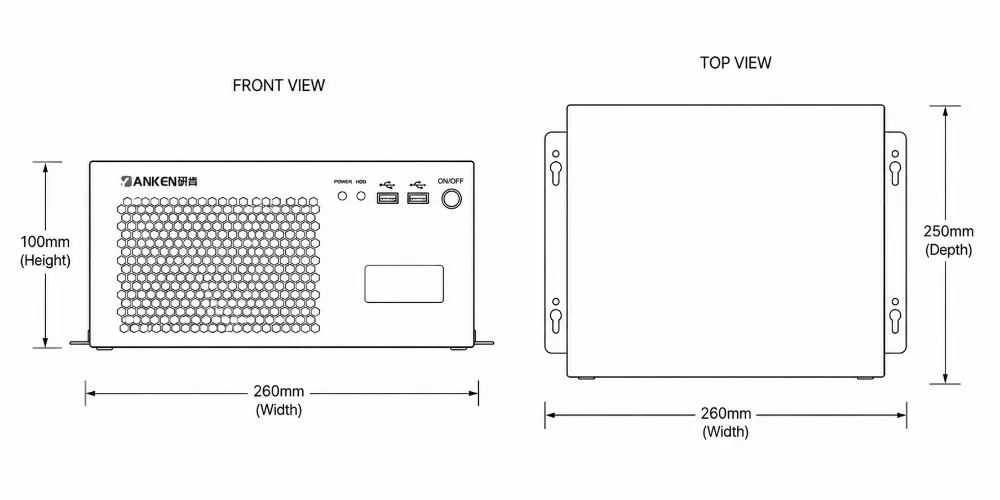

| physical size | 260mm (width) × 250mm (depth) × 100mm (height) |
| Installation method | Standard wall mount installation (wall mount is removable), supports desktop placement |
| Temperature control function | Supports the optional installation of a front temperature control display according to needs |
Technical parameters
| Specification parameters | Intel 3~11th generation platform | Intel 12th~14th generation platform |
|---|---|---|
| Processor (CPU) | Intel 3~11th generation Core i3/i5/i7/i9 | Intel 12th~14th generation Core i3/i5/i7/i9 |
| Memory (RAM) | Maximum 8GB for 3rd to 4th generation; 64GB for 6th to 11th generation | Maximum support 64GB |
| Hard disk (Storage) | 2×SATA hard drive; 1×MSATA hard drive | 2×SATA hard drive; 1×M.2 hard drive |
| Network port (LAN) | 2×Gigabit network port | 2×Gigabit network port |
| display interface | VGA + HDMI dual display, supports dual-screen synchronous/asynchronous display | VGA + HDMI dual display, supports dual-screen synchronous/asynchronous display |

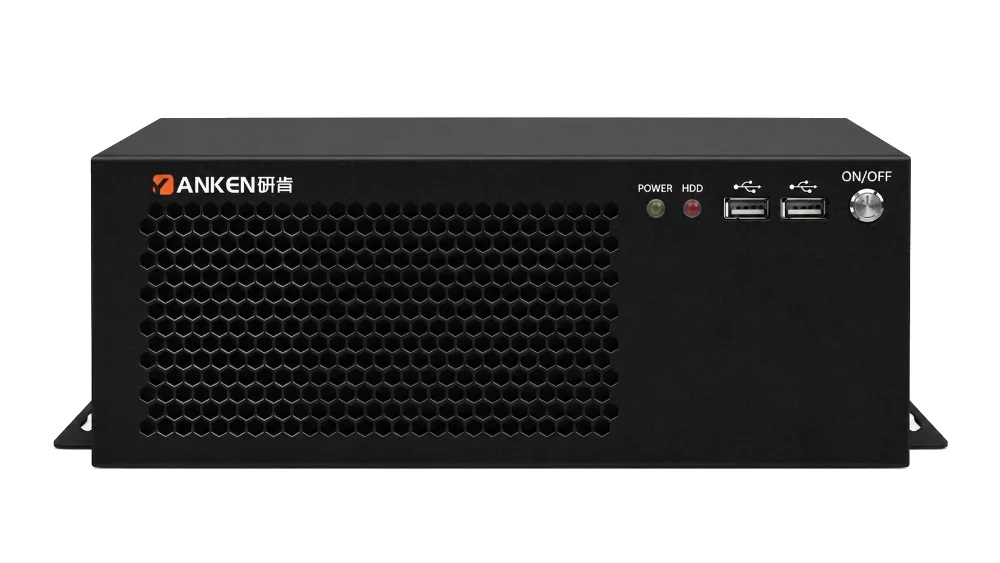

| USB interface | Front: 2×USB2.0; Rear: 2×USB2.0 + 4×USB3.0 | Front: 2×USB2.0; Rear: 2×USB2.0 + 4×USB3.0 |

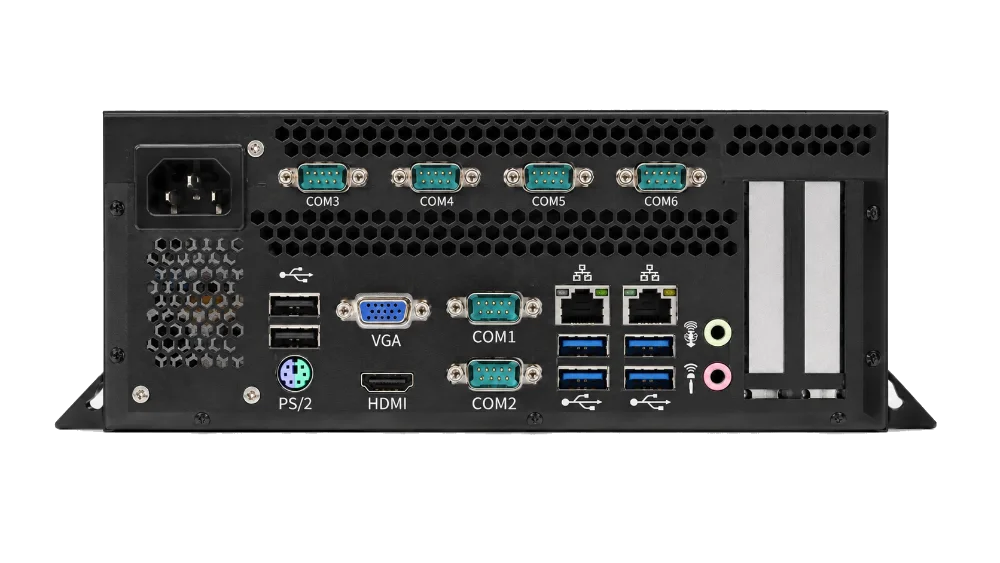

| COM serial port | 6×RS232 (COM1/COM2 can be set to RS485/RS422 by jumper) | 6×RS232 (COM1/COM2 can be set to RS485/RS422 by jumper) |
| Expansion slot | 1×PCIe x16 half-height expansion slot (supports independent graphics cards, fiber optic cards, etc.) | 1×PCIe x16 half-height expansion slot (supports independent graphics cards, fiber optic cards, etc.) |
| Other functions | Supports power-on by incoming calls and wake-on-LAN (choose one from the two); LOGO can be shipped neutrally | Supports power-on by incoming calls and wake-on-LAN (choose one from the two); LOGO can be shipped neutrally |
| Support system (OS) | Windows / Linux / Ubuntu / CentOS / Server | Windows / Linux / Ubuntu / CentOS / Server |
