Core Highlights
expansion cardFour full-height plug-in card slots: 1×PCIe x16, 1×PCIe x4, 2×PCI, with strong hardware expansion capabilities
showHDMI + VGA + DVI/DP multi-interface, supports dual-screen synchronization and asynchronous independent display
runSupports long-term stable operation 7×24 hours, supports power-on and wake-up on network
InstallationThe desktop is placed flat, and the full-height body is suitable for multi-card and multi-disk expansion scenarios.
systemSupports mainstream operating systems such as Windows / Linux / Ubuntu / CentOS / Server
Application scenarios
Basic product information
| Product name | Desktop full-height four-slot expansion industrial computer |
| Product brand | YANKEN |
| Product model | EPC-2250M |

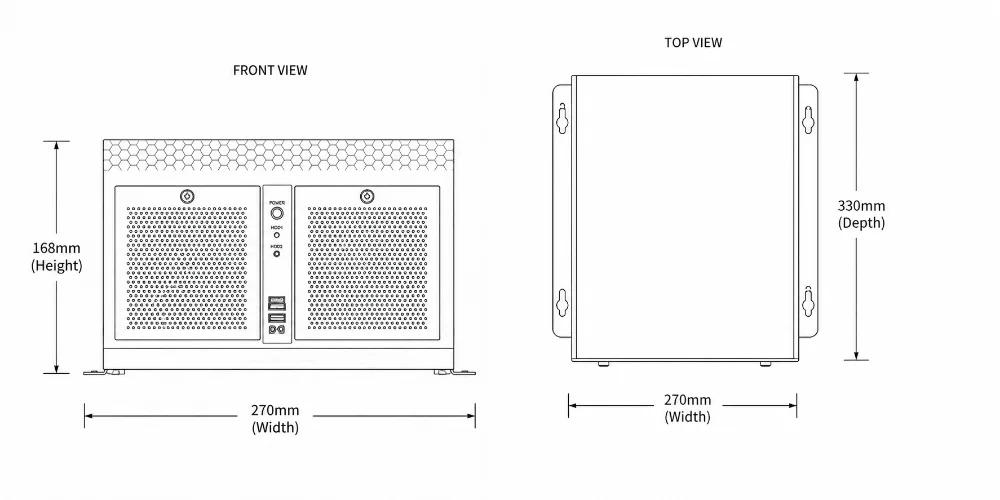

| physical size | 270mm (width) × 330mm (depth) × 168mm (height) |
| Installation method | Support desktop placement flat |
Technical parameters
| Specification parameters | Intel 6th~9th generation platform | Intel 10th~14th generation platform |
|---|---|---|
| Processor (CPU) | Intel 6/8/9 generation Core i3/i5/i7/i9 | Intel 10th~14th generation Core i3/i5/i7/i9 |
| Memory (RAM) | Maximum support 64GB | Maximum support 128GB |
| Hard disk (Storage) | 3×SATA hard drive bays | 3×SATA hard drive bay; 1×MSATA; 1×M.2 |
| Network port (LAN) | 2×Gigabit network port | 2×Gigabit network port |
| display interface | HDMI + VGA + DVI, support dual screen synchronous / asynchronous | HDMI + VGA + DP, support dual screen synchronous / asynchronous |

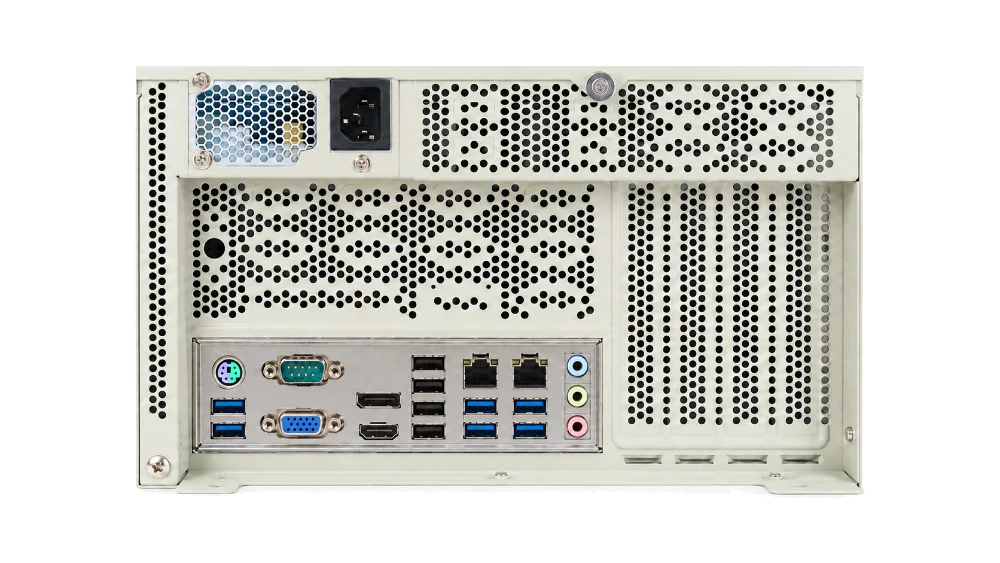

| USB interface | Front: 2×USB2.0; Rear: 4×USB2.0 + 2×USB3.0 | Front: 2×USB2.0; Rear: 4×USB2.0 + 6×USB3.0 |
| Expansion slot | 1×PCIe x16 + 1×PCIe x4 + 2×PCI (full height direct plug) | 1×PCIe x16 + 1×PCIe x4 + 2×PCI (full height direct plug) |
| Other functions | Supports power-on by incoming call and wake-on-LAN (choose one from the two) | Supports power-on by incoming call and wake-on-LAN (choose one from the two) |
| Support system (OS) | Windows / Linux / Ubuntu / CentOS / Server | Windows / Linux / Ubuntu / CentOS / Server |
