Core Highlights

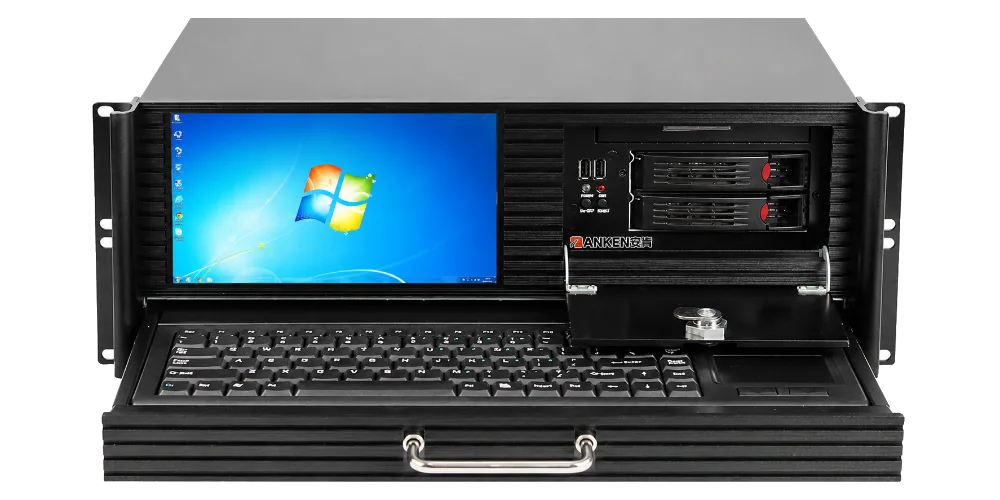

DesignIntegrated 8.9-inch LCD screen, equipped with a hidden pull-out 87-key keyboard and touch mouse, and 2 front hot-swappable hard drive bays
serial port2×RS232 serial ports, support jumper setting to RS422/485
batterySupports optional customized built-in battery with battery life of about 1 to 2 hours
runSupports long-term stable operation 7×24 hours, supports power-on and wake-up on network
systemSupports mainstream operating systems such as Windows / Linux / Ubuntu / CentOS / Server
Application scenarios
Basic product information

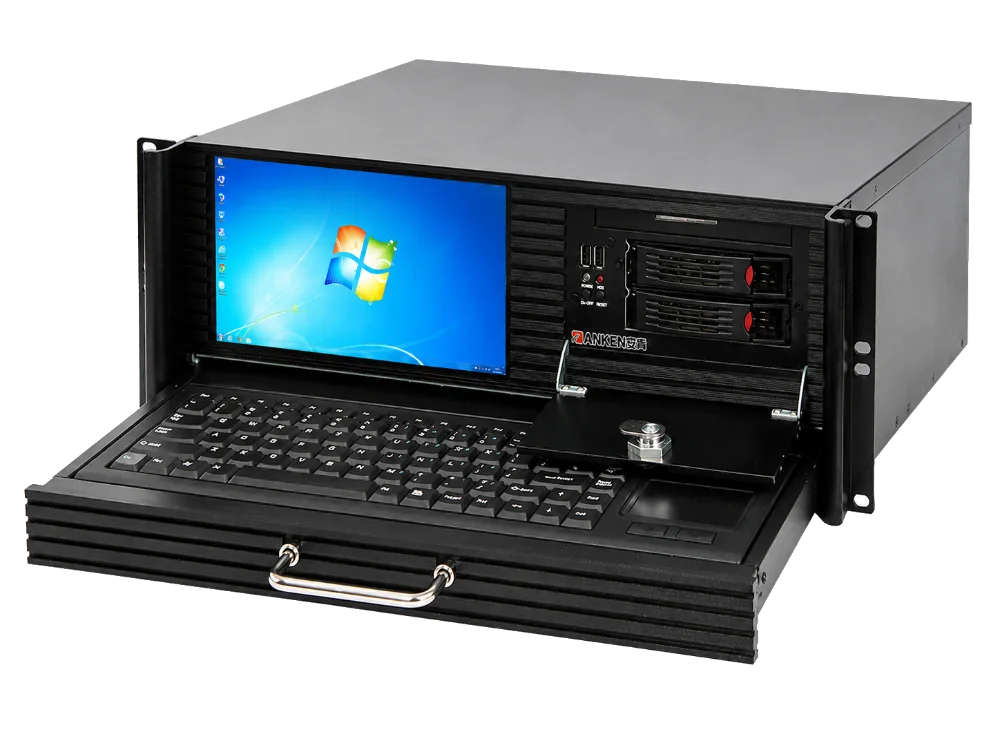

| Product name | 4U integrated 8.9-inch integrated rack industrial computer with screen keyboard and mouse |
| Product brand | YANKEN |
| Product model | IPC-510C |

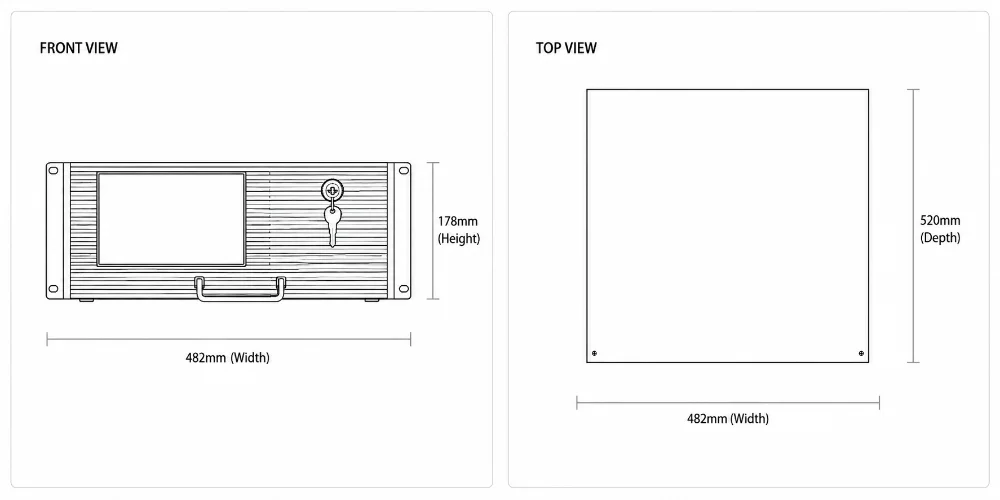

| Chassis size | 482mm (width) × 520mm (depth) × 178mm (height) · 4U |
| battery support | Batteries are not included by default; built-in batteries can be customized and installed (last 1–2 hours) |
Technical parameters
| Specification parameters | Intel 3~11th generation platform | Intel 12th~14th generation platform |
|---|---|---|
| Processor (CPU) | Intel 3~11th generation Core i3/i5/i7/i9 | Intel 12th~14th generation Core i3/i5/i7/i9 |
| Memory (RAM) | Maximum support 64GB | Maximum support 64GB |
| Hard disk (Storage) | 2×SATA hard drive + 1×MSATA hard drive | 2×SATA hard drive + 1×M.2 hard drive |
| Network port (LAN) | 2×Gigabit network port | 2×Gigabit network port |
| Display | 8.9-inch 1024×768 LCD display | 8.9-inch 1024×768 LCD display |

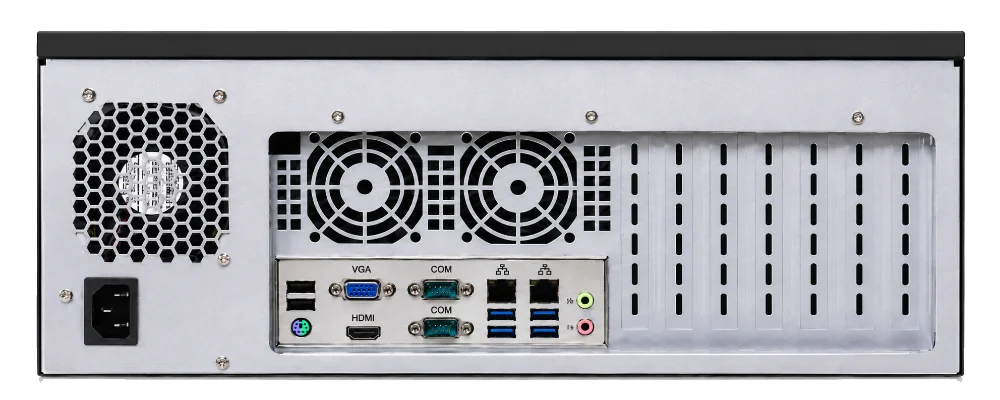

| USB interface | Front: 2×USB2.0; Rear: 2×USB2.0 / 4×USB3.0 | Front: 2×USB2.0; Rear: 2×USB2.0 / 4×USB3.0 |
| COM serial port | 2×RS232 (can be set to RS485/RS422 by jumper) | 2×RS232 (can be set to RS485/RS422 by jumper) |
| Preconfiguration | 87-key keyboard; touch mouse; 2× hot-swappable hard disk bays; notebook optical drive bay; detachable handle | Tongzuo |
| Expansion slot | 1×PCIe x16 expansion slot | 1×PCIe x16 expansion slot |
| Support system (OS) | Windows / Linux / Ubuntu / CentOS / Server | Windows / Linux / Ubuntu / CentOS / Server |
