Core Highlights
TouchTen-point capacitive touch screen, precise touch, responsive and no touch blind spots

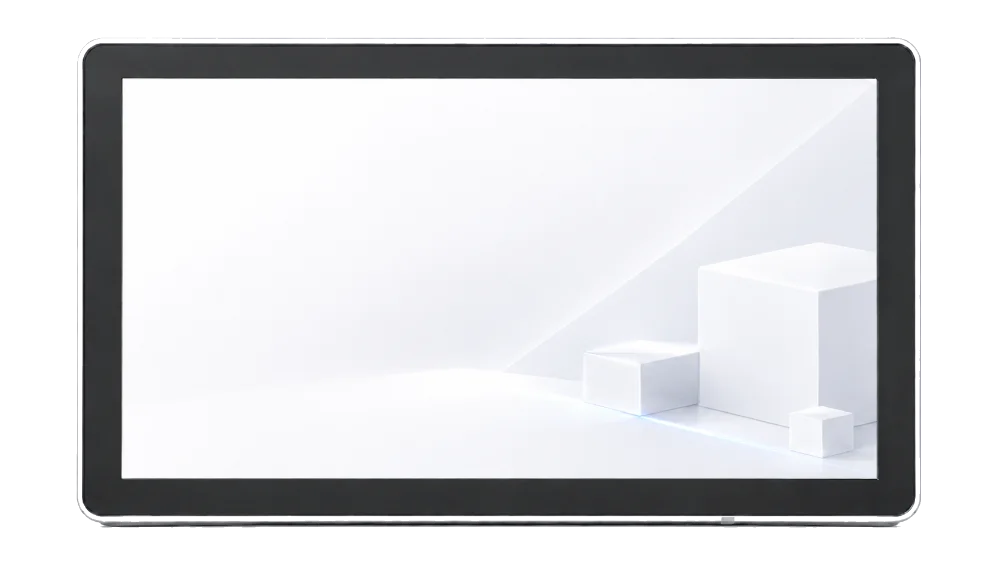

protectionAll-pure flat panel professionally designed to reach IP65 waterproof and dustproof rating

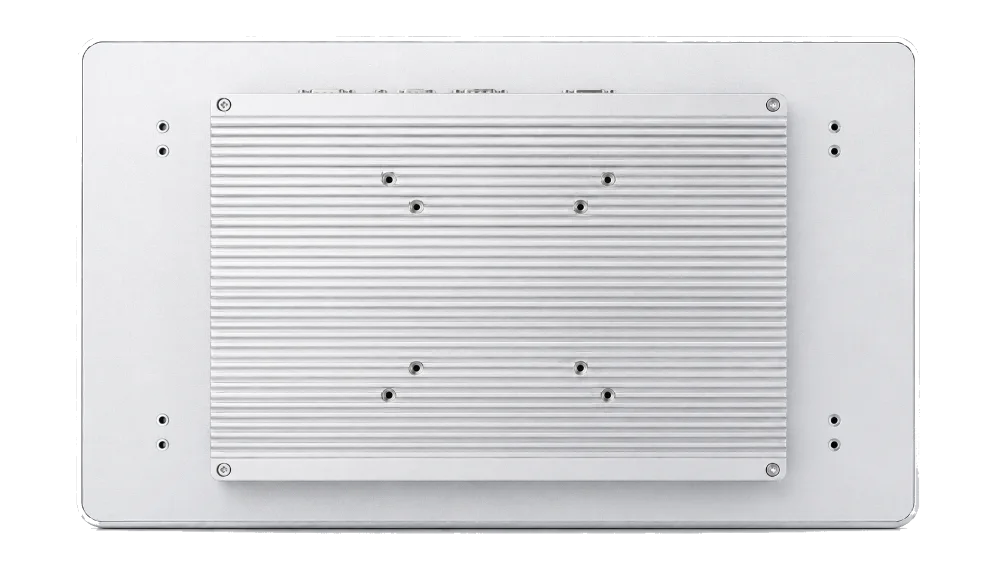

Heat dissipationLarge-area aluminum plate fins for heat dissipation, fanless, completely silent and efficient heat dissipation design
ExpandUp to 4×COM serial ports at the rear (3×RS232 + 1×RS485); supports 1×wireless WiFi expansion slot
InstallationSupports multiple installation combinations of embedded (with embedded buckles), wall-mounted, and desktop
systemWindows is pre-installed for free by default, supporting Windows 7 / 8 / 10 and other systems
Application scenarios
Basic product information

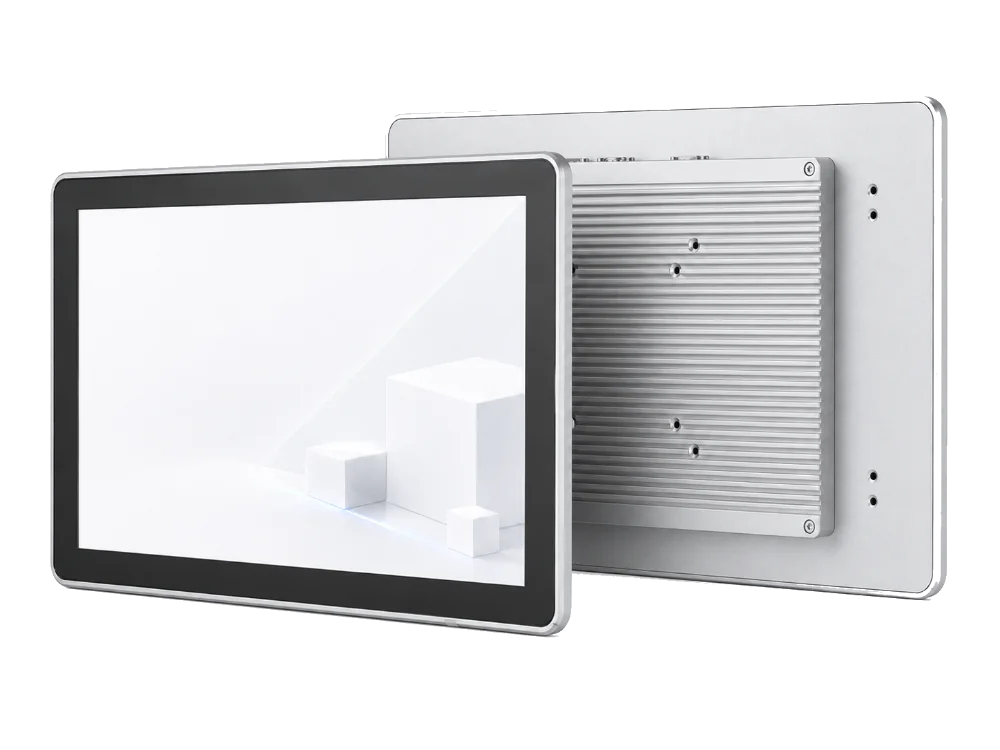

| Product name | Fanless touch industrial tablet computer host |
| Product brand | YANKEN |
| Product model | PPC-S320 |
| Craftsmanship appearance | All-aluminum craftsmanship; all-pure flat panel water-proof and leveling design; switch wear-resistant and anti-corrosion; front power indicator light |
| Heat dissipation structure | Large-area back aluminum plate fins for efficient fanless passive heat dissipation |
| Installation support | Embedded buckles and fixing strips are shipped by default to support inline installation; optional wall mounts or desktop brackets are supported. |
Technical parameters
| Technical parameter items | Specifications and configuration description |
|---|---|
| Processor (CPU) | Intel Celeron J1900; Core i3-4010U; i5-4200U; i7-5500U optional |
| Memory (RAM) | Maximum support 8GB |
| Hard disk (Storage) | 1×MSATA hard drive socket; 1×2.5″ chassis hard drive bay |
| Network interface (LAN) | 2×Gigabit network port |
| show output | 1×VGA; 1×HDMI (supports dual-screen synchronous/asynchronous independent display) |
| USB interface | 3×USB2.0; 1×USB3.0 |
| COM serial port | 3×RS232; 1×RS485 (a total of 4×COM at the rear of the chassis) |
| wireless extension | 1×Wireless WiFi expansion slot |
| Power supply interface | 12V (DC circular interface); 12V (Phoenix terminal port) |
| working temperature | -10℃～55℃; storage -20℃～70℃ |
| Support system | Mainstream operating systems such as Windows 7/8/10 |
