Core Highlights

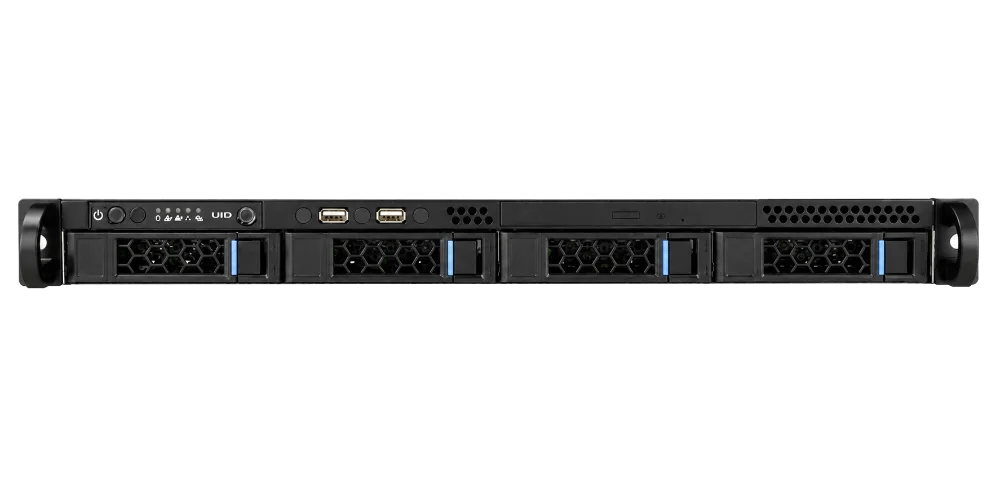

storageComes standard with 4 front hot-swappable hard drive slots, compatible with 2.5/3.5-inch mechanical or solid-state drives
RAIDSupports RAID 0/1/5/10 disk arrays to protect critical data storage
expansion cardSupports 1U expansion of full-height expansion card through 90° right-angle adapter card, flexible combination with graphics card/network card/fiber optic card
CabinetCompatible with standard 19-inch cabinet installation, suitable for computer room or data center deployment
runSupports long-term stable operation 7×24 hours, supports power-on and wake-up on network
systemSupports mainstream operating systems such as Windows / Linux / Ubuntu / CentOS / Server
Application scenarios
Basic product information

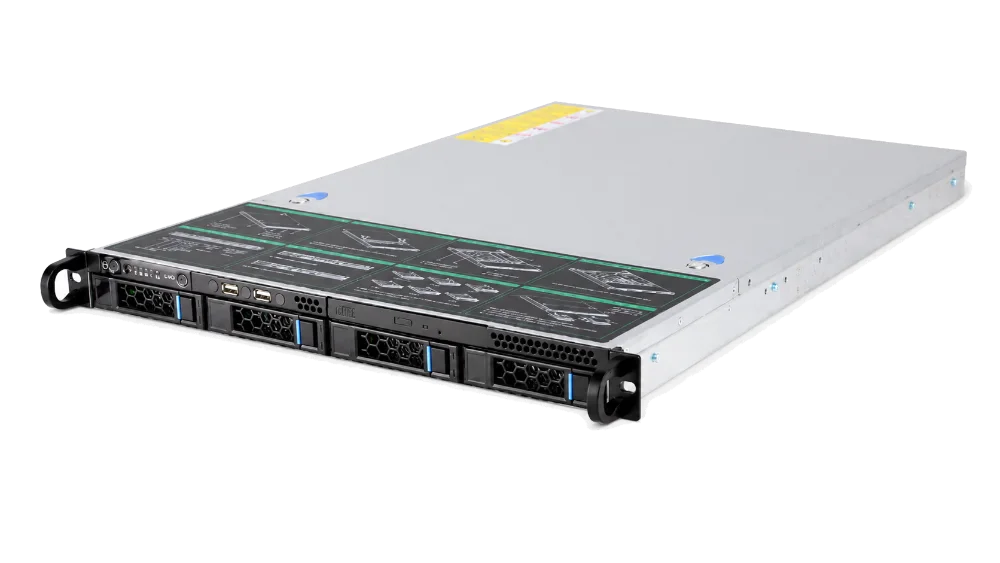

| Product name | 1U hot-swappable rackmount industrial server |
| Product brand | YANKEN |
| Product model | S156 |

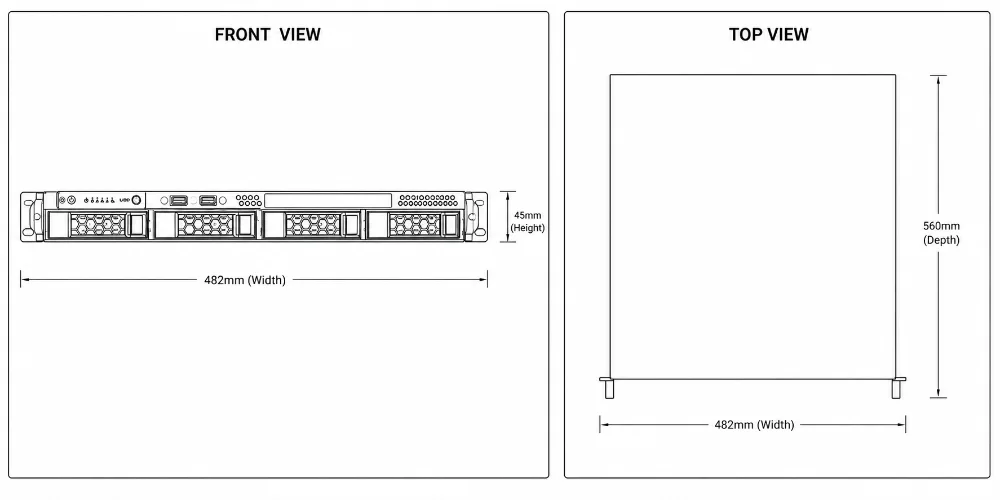

| physical size | 482mm (width) × 560mm (depth) × 45mm (height) · 1U |
| Cabinet compatible | Compatible with standard 19-inch rack installation |
Technical parameters
| Specification parameters | Xeon E5 Platform | Xeon E3 Platform | Bronze/Silver/Gold Platform |
|---|---|---|---|
| Processor (CPU) | Intel Xeon E5 Series | Intel Xeon E3 Series | Intel Xeon Bronze/Silver/Gold |
| Memory (RAM) | Max 128GB | Max 64GB | Maximum 256GB |
| Hard drive support | 4×SATA + 1×M.2 | 4×SATA | 4×SATA |

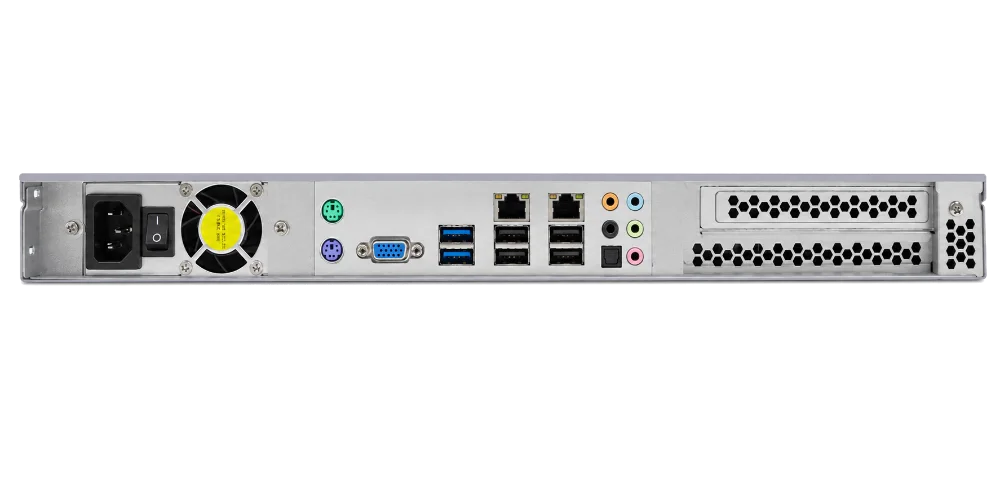

| Network port (LAN) | 2×Gigabit network port | 2×Gigabit network port | 2×Gigabit network port |
| RAID array | RAID 0/1/5/10 | RAID 0/1/5/10 | RAID 0/1/5/10 |
| IPMI management | Not supported | Support IPMI remote management | Support IPMI remote management |
| Expansion slot | 1×PCIe x16 (requires 90° riser card) | 1×PCIe x16 (requires 90° riser card) | 1×PCIe x16 (requires 90° riser card) |
| Support system (OS) | Windows / Linux / Ubuntu / CentOS / Server | Tongzuo | Tongzuo |
